General Technical
Information
| HOSTNAME |
COBOLD |
| SYSTEM CPU |
Motorola MC68020 @20 MHz |
| CACHE
(2nd, 1st D/I) |
0 KB, 0 KB / 256 Bytes |
| RAM |
24 MB (Max. 24 MB) |
| SCSI BUS |
1 x SCSI (5 MB/s) |
| OPTION BUS |
N/A (no space in the box for extra cards)
|
| GRAPHICS |
8-plane 1152x900@66Hz and onboard mono
frame buffer |
| HARD DISK DRIVE |
N/A |
| NETWORK |
10 Mbps AUI |
| OS |
N/A |
| YEAR |
1988 |
| SPEED |
not measured VAX
MIPS |
| COMMENTS |
So far I haven't booted up this system to
any OS.
|
| ESTIMATED PRICE
'87 |
$30,000 |
History and other comments

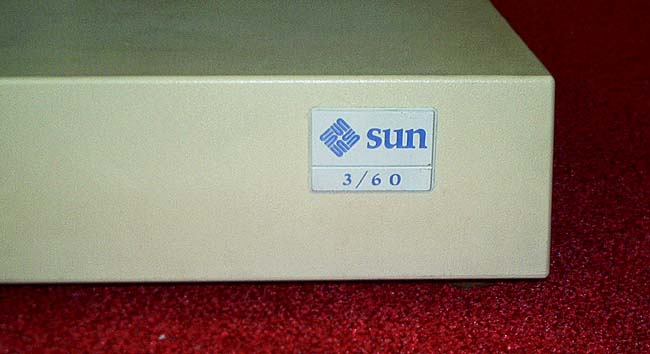

This SUN 3/60 computer has a broken PSU. The mainboard should be OK,
though.
If I ever want to use it I have to
repair the PSU or I'll try connecting a peecee PSU to the mainboard.
I've tried
ther latter, but I had difficulties with getting enough current on
-5V
DC. I measured the current drain to about 1.7 A, and a standard PC/AT
PSU
only has a 0.5 A voltage regulator for -5V DC. I replaced the regulator
with
another, a 1.5A 7905 but this was not enough. The system would work a
couple
of minutes and then fail, because the regulator becomes too hot and
shuts
down to protect itself from burning up.
