HARDWARE COLLECTION PICTURES


Digital Equipment Corporation Computer systems

Other computer systems



DECstation 3100


Inside DECstation 3100

Inside, before mothermoard upgrade, 2100 motherboard

PMAX PROM IC's

VFB02 Color video SIMM

PMAX CPU, R2000 running @16.7MHz

DIGITAL "Hockey puck" mouse

DECstation 3100 in a DECstation 2100 labelled BA42 enclosure


PMAX Write-Back cache IC's?

DECstation 5000/260


Inside DECstation 5000/260

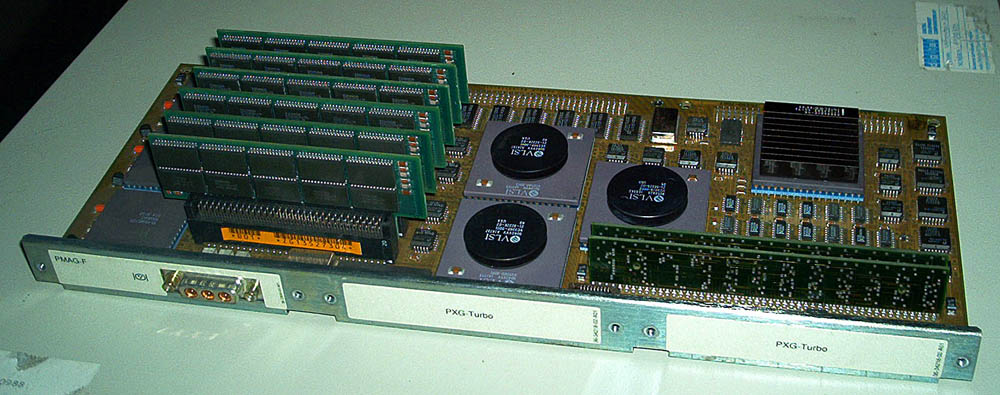

PMAG-F (PXG Turbo) TC board
, back of it, from the side

IBM 9 GB hard drive with 68 pin to 50 pin adapter

R4400SC CPU card with CPU and LSI ASIC

RDD42 SCSI CD-ROM drive

DIGITAL mouse
with adapter

MS02-CA 32MB memory cards

Inside BA42 Storage Expansion box

DECstation 5000/260 with 20" DEC VR320 monitor and Storage Expansion box

DECstation 5000/133

Inside DECstation 5000/133
PMAGB-B TC card
Quantum 2 GB hard drive

33MHz R3000 CPU
and the 25MHz one, before upgrade.

DEFTA FDDI TC card

TZ30 tape drive
80 pin DECstation memory SIMMs
PMAD-A ethernet TC card

DECstation 5000/33


33MHz R3000 CPU

MAXINE Serial Bus Puck mouse

MAXINE Serial Bus connector

 ATX-DECstation 5000/150

 Go here, DECstation in ATX enclosure project page.

VAXstation 3100 M30


CVAX CPU

GPX 8-plane graphics board

DEC "MMJ" Serial port with console switch to the right

Inside the box

SCSI/MFM disk controller

DIGITAL "Hockey puck" mouse
and the funny knobs under it.

Memory board 16MB
and 12MB

Panasonic CD-ROM drive

Inside, mainboard visible



VAXstation 4000 VLC


System On a Chip 'SOC' VAX CPU

LGC 8-plane graphics board

Back of the small "pizzabox"

Inside the small "pizzabox"

Side of the box, connectors for keyboard and mouse

The VAXstation VLC enclosure from the front


VAXstation 4000 M60


DEC BA46A enclosure

VAXstation 4000 M60 back

VAXstation 4000 M60 date stamp "MAY 13 1996"

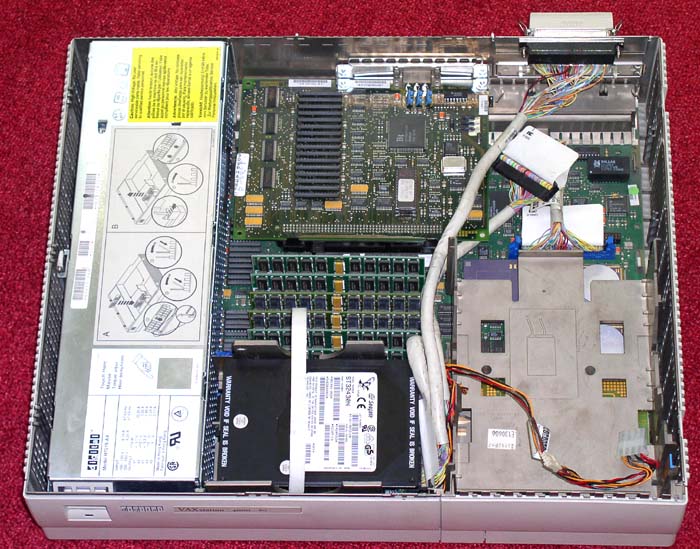

Inside the box

'One click' installable PSU

SCSI disk tray + disks


DEC 3000/300X

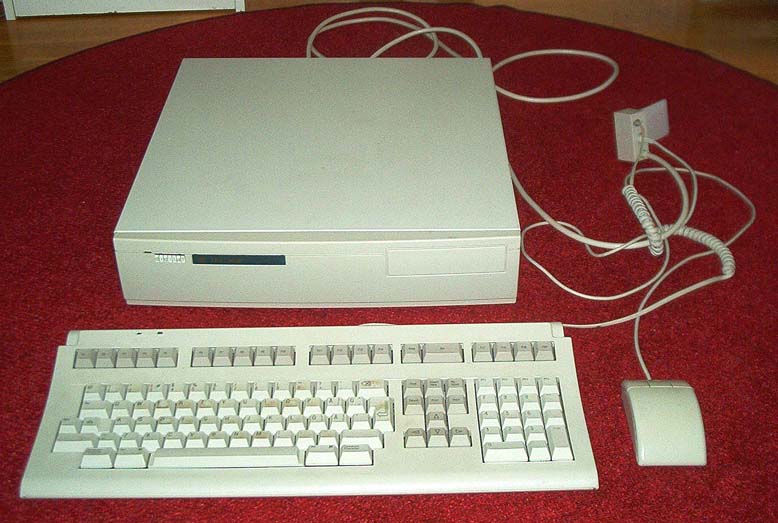

DEC 3000 System w/ keyboard and mouse

Inside the DEC3000/300 enclosure

Back of the DEC3000/300 enclosure

PMAZC-AA Dual Channel SCSI-2 TurboChannel option card

PMAGD-AA Accelerated 2D TurboChannel option card



DEC Alpha 164SX

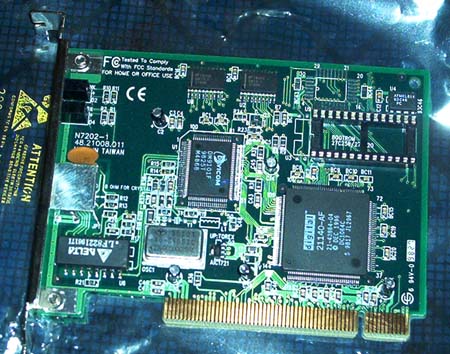

DEC PCI network card: DE500


PCI SCSI card: ASUS Sym53c875

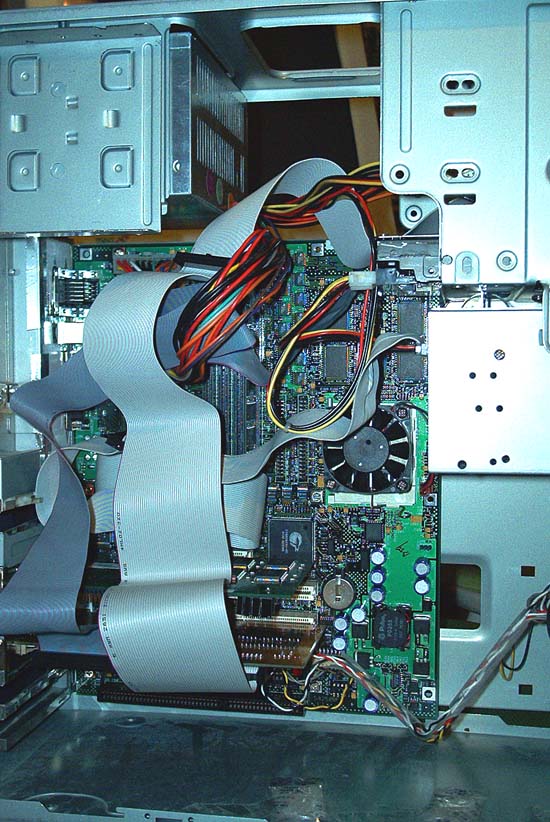

DEC 164SX motherboard installed in ATX enclosure


DEC Alpha 21164PC CPU


PCI graphics card: Permedia2 w/ 8 MB video memory


The 164SX midtower ATX-box from outside


DEC Alpha XL266


The Alpha XL midtower box from outside


Power Supply Unit

Inlet air cooling fan for option cards and CPU (a pretty big one, that too)


Alpha CPU card with 2 MB  cache





DEC TurboChannel Card Collection

NAME (click on the link for a pic)
CATEGORY
DESCRIPTION
PMAG-A 2D Graphics, B/W 4-plane 1280 x 1024 @72Hz, unaccelerated
PMAGB-B  2D Graphics, color 8-plane 1280 x 1024 @66/72Hz , accelerated. You can select between the two refresh rate settings with a jumper on the card.
PMAG-C 2D Graphics, color 8-plane 1280 x 1024 @66Hz, accelerated
PMAG-D
3D Graphics, color 8-plane 1280 x 1024 @66Hz, 3D accelerated
PMAG-F
3D Graphics, true color 96-plane 1280 x 1024 @66Hz, 3D accelerated
PMAGB-J*
2D Graphics, color 8- or 24-plane 1280 x 1024 @72Hz
PMAGD-AA
2D Graphics, color 8-plane, resolution / refresh rate can be set with a rotary switch on the card. This card is DEC Alpha specific (doesn't work in a DECstation).
DEFTA-FA Network adapter
100Mbps FDDI
DEFZA-CA
Network adapter 100Mbps FDDI (wierd connectors ...)
PMAD-A  Network adapter 10Mbps AUI ethernet
PMAZ-A*
SCSI adapter 5MHz SCSI-2
PMAZC-AA
SCSI adapter 10MHz Dual Channel SCSI-2, it has two NCR53CF96 chips
LOFI* Audio adapter Analog audio I/O

*=I don't have these cards. These pictures are here because I decided to include some of  the DEC relatedpictures I've collected, over the years.

Other computer systems

SGI Indigo2 IMPACT 10000


R10000 CPU Card with huge cooler

GIO/EISA option slots

Monitor connector on Solid IMPACT graphics card plus audio and external SCSI connector

Inside the SGI Indigo2 box

SGI SCSI hard drive cold-swap sled plus 4GB disk

Standard PS/2 keyboard and mouse ports

SGI Octane R10000


Octane motherboard w/ R10000 CPU module and 512MB RAM

Octane 850W Power Supply Unit

The Octane system with the front cover removed

Back of the Octane system, with the motherboard module half-way drawn out.

The Octane viewed from the front


SUN 3/60


The SUN 3/60 motherboard

The four BNC connectors on the graphics board


The Motorola 68020 on the motherboard

HP 9000 Model 735/99


HP desktop workstation w/ keyboard and mouse

Rear of the system, it consists of separate modules


The disk module w/ 2 x 2 GB UW HVD SCSI disks


The I/O module with parallell, serial, HIL, audio, SE SCSI, HVD SCSI and ethernet ports

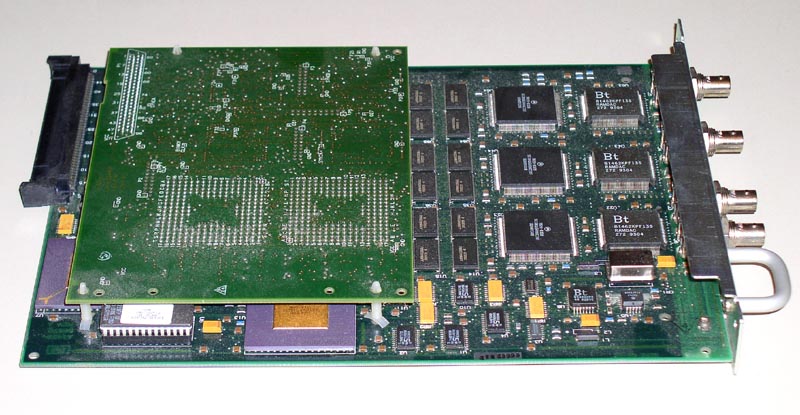

The graphics board, outputs sync-on-green video on three BNC connectors


The PA-RISC CPU board w/ 352MB RAM installed. There are still 4 empty slots.
