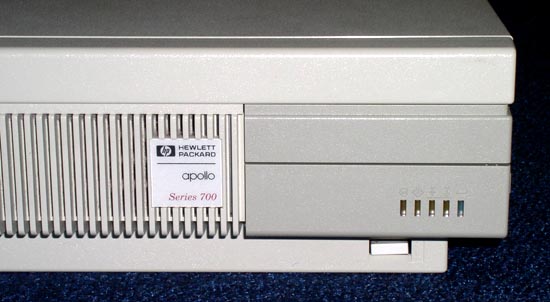

HP 9000 Model 735/99 ("HARDBALL" )



Click here for more pictures.

General Technical Information

HOSTNAME HARP
SYSTEM CPU HP PA-RISC PA-7100 @99MHz
CACHE (2nd, 1st D/I) 0 KB, 256 KB / 256 KB (off-chip)
RAM  208 MB  (Max. 784 MB, 16MB onboard)
SCSI BUS 1 x SCSI-2 (10 MB/s) and 1 x Wide SCSI-2 HVD (20 MB/s)
OPTION BUS 1 x EISA Slot
GRAPHICS CRX48Z, 24-plane 1280x1024 72Hz
HARD DISK DRIVE 2 x 2 GB RPM SCSI-2 disks
CD-ROM DRIVE HP external SCSI CD-ROM
NETWORK 10base2 (separate nic module)
AUDIO Onboard audio chip
OS HP-UX 11.00
YEAR 1992
SPEED 118 VAX MIPS
POWER CONSUMPTION (MAX. / MEASURED) 310 / 177 - 183 W (for the main system)
60 - 73 W (for the graphics box)
COMMENTS This machine will run HP-UX 11.00 with X11 quite nicely.
PRICE '92 (basic configuration, 32 MB RAM, 525 MB disk, 8-plane graphics, 19" color monitor)
 $37,395

History and other comments

This computer was put togeather by combining parts from a HP 9000 735/125 and the HP 9000 735/99 I already had, in February 2007. I got the 735/125 with some basic options installed in exchange for some SUN hardware, so I consolidated all the best parts into the 735/125, while this box got all the low(er)-end parts.

Update in 2009: I got some more RAM for this 735, plus an external graphics box, the 'CRX48Z'. I took out the original 'CRX8' board and replaced it with the bus adapter board coming with the external box.

If you want to read more about older HP workstations or servers, I recommend going to www.openpa.net for more information.

Back to My Hardware Collection.

Last updated:  26-6-2009
